LOGIC CONTROLLERS
Share this product page:

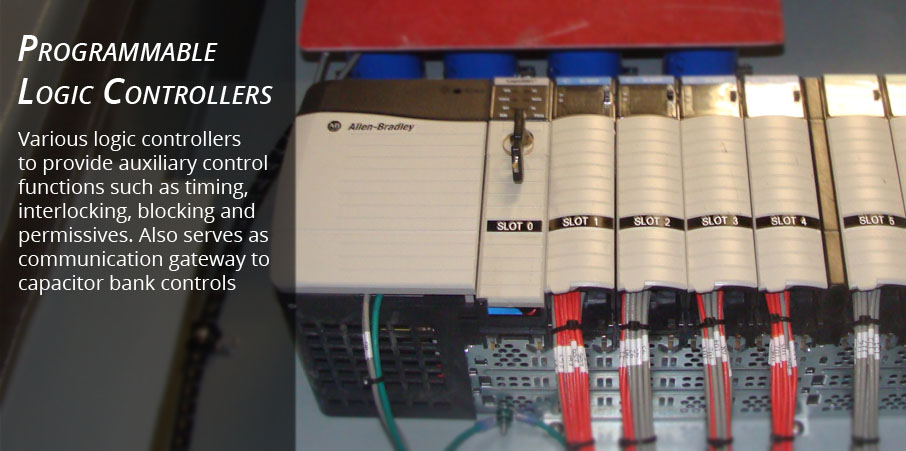

Various logic controllers are available to provide auxiliary control functions such as timing, interlocking, blocking, and permissives. Controllers also provide a communication gateway between plant DCS systems and the power capacitor bank.
The controllers are programmed and tested at NEPSI and form an integral part of the automatic control and protection system.
Controller choice is based on customers PLC platform, cost, and reliability.
Click on the custheets below for further details on commonly used logic controllers.
SUPPLIER |
PROGRAM LANGUAGE |
TRADE |
METER |
CUTSHEETS |
INSTRUCT. |
MODBUS |
DNP |
PROFIBUS |
IEC 60870 |
IEC 61850 |
| GE Multilin |
Flex Logic | C70 | LCD |  |
|
Yes | Yes | N/A | Yes | Yes |
| Siemens | Ladder / Function Block | LOGO | LCD | |
No | No | No | No | No | |
| Siemens | Ladder | S7-1200 | HMI | |
Yes | Yes | Yes | Yes | No | |
| Allen Bradley |
Ladder | Micro Logix |
LCD / HMI | |
Yes | Yes | Yes | Yes | Yes | |
| Allen Bradley |
Ladder / Function Block | Compact Logix |
HMI | |
Yes | Yes | Yes | Yes | Yes | |
| Schneider | Ladder | M340 PAC |
HMI | |
Yes | Yes | Yes | Yes | Yes | |
| Schneider | Ladder | Quantum PAC |
HMI | |
Yes | Yes | Yes | Yes | Yes | |
| SEL | SELogic | SEL-487V | Yes | |
N/A | Yes | N/A | N/A | Yes |
