NEPSI’s Metal-enclosed Harmonic Filter Banks can be equipped with drawout or fixed mounted circuit breakers that provide short circuit protection, switching, and isolation of the filter bank. The breakers are mounted in an isolated compartment that forms an integral part of the filter bank enclosure.

The breaker can be interfaced with NEPSI’s protection and control system to form a completely integrated system that is wired, tested, and calibrated at the factory before shipment.

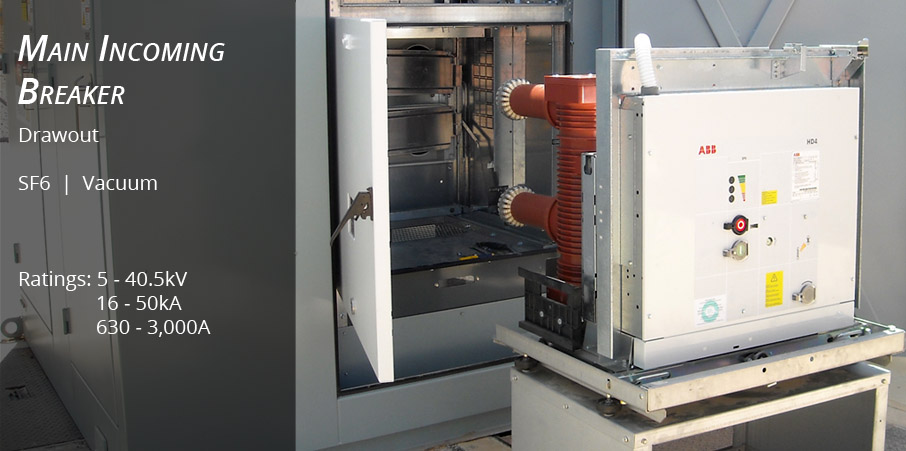

The drawout circuit breaker provides a “visible break” for maintenance and repair, short circuit protection for internal faults, and switching capability for fixed filter banks.

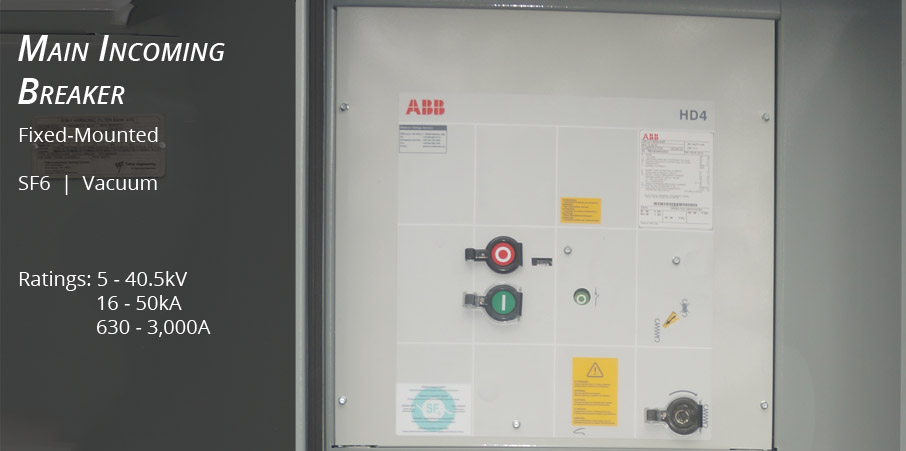

The fixed mounted circuit breaker provides short circuit protection for internal faults, and switching capability for fixed filter banks, but does not provide a “visible break” required for maintenance and repair. For this reason, most fixed mounted circuit breakers are provided with line side air-disconnect switches. The air-disconnect switch provides the necessary disconnecting means for maintenance and repair.

All breakers form an integral part of the key interlock system.


Click on the cutsheets below for further details.

PRODUCT LITERATURE


SUPPLIER

TRADE
NAME

TYPE

STANDARDS

VOLTAGE
RANGE

BIL

CURRENT
RANGE

FAULT RATING
RANGE

RATED FOR
CAP SWITCHING

CUTSHEETS

INSTRUCTIONS

ABB HD4 SF6 IEC
62271-100
12 - 40.5kV 185kV 630 - 3,600A 16 - 50kA C2 Rated
ABB AMVAC Vacuum ANSI
C37.04
C37.06
C37.09
5 - 27kV 125kV 1,200 - 3,000A 25 - 50kA General/
Definite
ABB VD4 Vacuum IEC
62271-100
12 - 36kV 170kV 630 - 3,150A 16 - 50kA C2 Rated
ABB ADVAC Vacuum ANSI
C37.04
C37.06
C37.09
5 - 15kV 95kV 1,200 - 3,000A 20 - 50kA C1 / C2
Rated
GE
Powell
PowerVAC Vacuum IEC
62271-100
5 - 15kV 95kV 1,200 - 4,000A 29 - 63kA General/
Definite
