CONTROL POWER TRANSFORMERS

Share this product page:

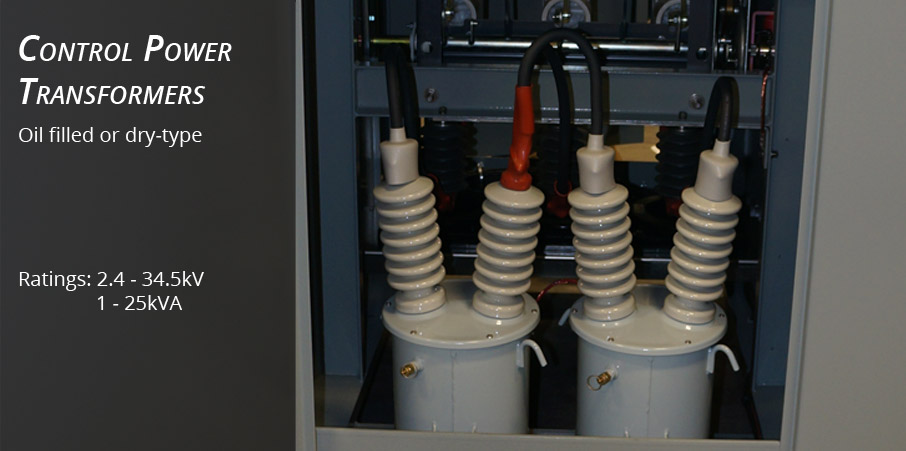

NEPSI’s Power Capacitor Banks can be equipped with one or more control power transformers for the purpose of providing control power and voltage signals to the protection, metering, and control system.

Depending on availability and customer preference, the control power transformer may be dry type or oil-filled. Primary and secondary control power transformer protection is provided as standard.

This option reduces installation cost by eliminating the requirements for a customer supplied bus voltage signal or control power necessary to operate the power capacitor bank.

Click on the cutsheets below for further details.

PRODUCT LITERATURE

SUPPLIER	TRADE NAME	TYPE	VOLTAGE RANGE	BIL	POWER RATING	CUTSHEETS
Cooper	Distribution Transformer	CPT / Oil Filled	2.4 - 19.9kV	75 - 150kV	5 - 50kVA
ABB	CPT-IK-5	CPT / Dry-Type	2.4 - 14.4kV	95kV	5kVA
ABB	VIY-60	PT / VT	2.4 - 4.8kV	60kV	1kVA
ABB	VIZ-75	PT / VT	2.4 - 7.2kV	75kV	1kVA
ABB	VIZ-11	PT / VT	7.2 - 14.4kV	110kV	1kVA
ABB	VIZ-12[G]	PT / VT	7.2 - 27.6kV	125kV	1kVA
ABB	VIZ-15[G]	PT / VT	12 - 34.5kV	150kV	1kVA
ABB	VIZ-20[G]	PT / VT	24 - 34.5kV	200kV	1kVA
